Lub kaum sab xis sidewall siv conveyor yog hom tshiab ntawm cov khoom siv txuas ntxiv mus. Nws muaj cov yam ntxwv nram qab no: loj conveying muaj peev xwm (piv nrog rau lwm yam conveyors, lub peev xwm conveying yog nce los ntawm 1.5 mus rau 2 zaug); muaj zog versatility (cov ntsiab lus tseem ceeb yog tib yam li cov khoom siv dav dav), siv ntau yam (tsim rau cov khoom siv thauj khoom xws li pob zeb crushed, thee, limestone, chiv, xuab zeb, av nplaum, ntoo chips, nplej, thiab lwm yam.; siv tau rau cov ntaub ntawv nrog ib chav tsev hnyav ntawm 500 txog 2500 kg / m3 thiab ib tug particle loj txog 2500 mm; Cov qauv yooj yim, kev saib xyuas yooj yim, chaw ua haujlwm me me thiab txuag nqi (nws tuaj yeem hloov cov qauv sib xyaw ua ke ntawm cov khoom siv thauj khoom thiab lub thoob nqa nqa thiab tuaj yeem nqa cov qauv no rau kev teeb tsa ncaj qha); yooj yim npaj. Yog li ntawd, nws tau siv dav hauv kev lag luam xws li thee, fais fab, metallurgy, tshuaj lom neeg kev lag luam thiab kev lag luam nplej.

Lub kaum sab xis Sidewall Siv Conveyor Txoj Cai Ua Haujlwm

Lub hauv paus ntsiab lus ntawm kev ua haujlwm ntawm lub kaum sab xis ntawm txoj siv sia siv conveyor yog qhov yooj yim. Nws feem ntau muaj ob theem: ntu nce thiab kab rov tav.
Hauv seem ascending, txoj siv conveyor nqa cov ntaub ntawv thiab txav mus los ntawm qhov chaw pib. Vim lub xub ntiag ntawm lub sidewall thiab lub cleat, cov ntaub ntawv tsis swb los yog yob thaum lub sij hawm conveying txheej txheem, yog li xyuas kom meej stability thiab efficiency ntawm lub conveying. Thoob plaws hauv cov txheej txheem, txoj siv conveyor yog nyob rau hauv lub xeev khoov, thiab los ntawm kev nqa cov ntaub ntawv sai sai, lub siab - lub dav hlau inclined yog tsim. Tom qab ntawd, cov ntaub ntawv raug xa mus rau ntu kab rov tav thiab txuas ntxiv mus rau txoj kab rov tav kom txog thaum lawv raug xa mus rau qhov chaw.

Lub kaum sab xis Sidewall Siv Conveyor Structure

Lub kaum sab xis sidewall siv conveyor yog tsim los ntawm cov khoom siv xws li cov khoom siv conveyor, cov cuab yeej tsav tsheb, tsav tsheb, khoov rub, idler, thav duab, cov khoom siv nruj, cov khoom siv qhia chute, tawm chute, hluav taws xob thiab kev tiv thaiv kev nyab xeeb, thiab lwm yam.

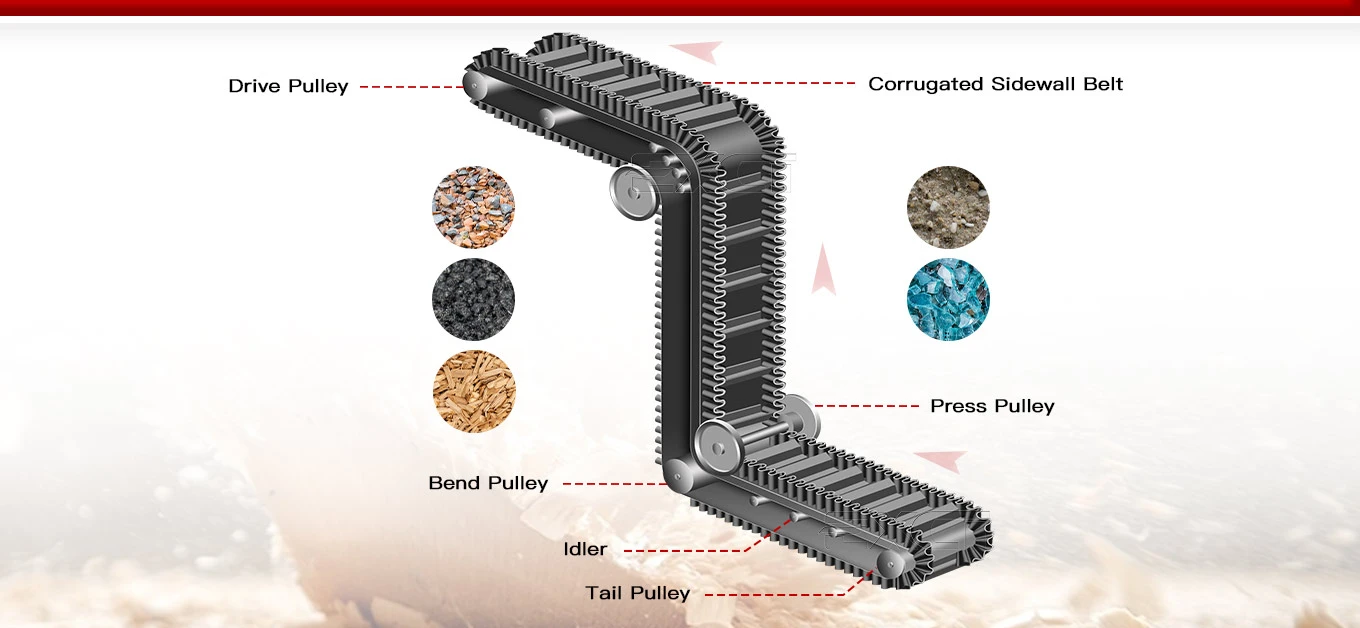

Steep Angle Sidewall Belt Conveyor Structure

Paub meej

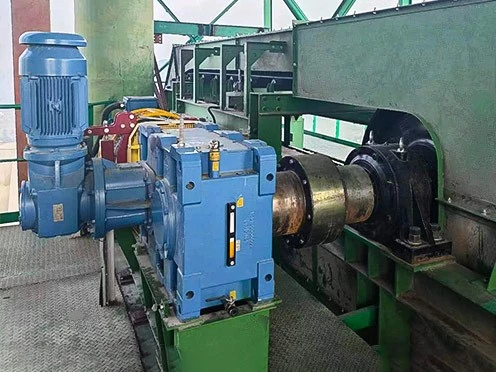

Steep Angle Sidewall Belt Conveyor Motor

Lub cev muaj zog

Lub zog kinetic nyob rau hauv lub tshuab conveyor muaj cov yam ntxwv ntawm cov qauv yooj yim, kev ntseeg siab thiab kev saib xyuas yooj yim.

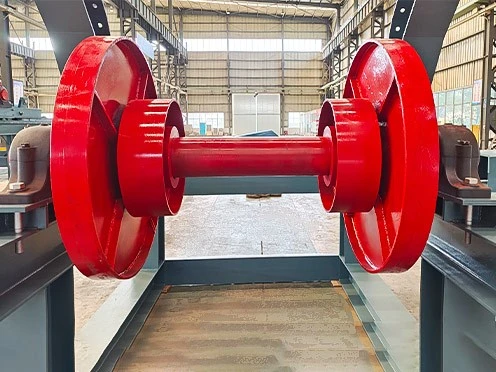

Steep Angle Sidewall Belt Conveyor Press Pulley

Nias Pulley

Nws yog siv los hloov txoj kev khiav ntawm txoj siv conveyor. Lub log siab nyob rau saum npoo (loading nto) ntawm txoj siv conveyor.

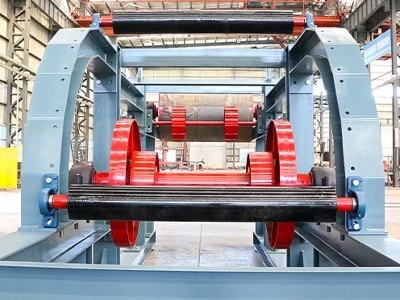

Idler

Nws yog siv los txhawb nqa txoj siv conveyor thiab cov ntaub ntawv ntawm txoj siv sia, ua kom nws txoj haujlwm ruaj khov.

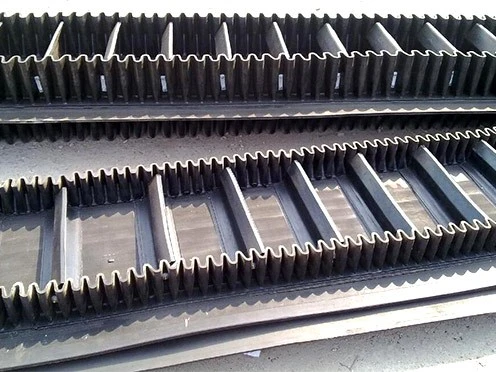

Steep Angle Sidewall Belt Conveyor Belts

Corrugated Sidewall Belts

Lub corrugated sidewall, cleat thiab lub hauv paus siv ua ib lub thawv -zoo li tus hopper rau thauj cov ntaub ntawv, yog li ua kom loj -angle tsheb thauj mus los.

Steep Angle Sidewall Belt Conveyor Contact Us

Tiv tauj peb rau tus nqi zoo tshaj

Xa koj cov kev xav tau thiab tham nrog ib tus kws tshaj lij engineers txog koj qhov project.

Xa lus nug tam sim no

Lub kaum sab xis Sidewall Siv Conveyor Feature

Siab -Angle Transportation

Lub kaum sab xis siab tshaj plaws tuaj yeem ncav cuag 90 degree. Nws yog ib qho khoom siv zoo tshaj plaws rau siab -angle tsheb thauj mus los thiab ntsug nqa. Nws tuaj yeem ua tiav lub kaum sab xis tsheb thauj mus los uas zoo tib yam siv conveyors tsis tuaj yeem ncav cuag. Yog li ntawd, nws tuaj yeem txuag cov khoom siv hauv pem teb thiab cov nqi tsim kho (kwv yees li 20% -30%).

Strong Conveying Capacity

Vim yog cov qauv cleat, cov khoom ntim cov khoom feem ntau yog siab dua 80% thiab cov khoom siv tsis yooj yim rau zawv zawg, ua rau nws nqa tau ntau cov khoom. Lub peev xwm conveying tuaj yeem kho raws li qhov xav tau sib txawv. Seb nws yog hmoov, granular lossis thaiv cov khoom, nws tuaj yeem thauj tau ruaj khov.

Khiav Smoothly Thiab Reliably

Tsis muaj qhov tshwm sim xws li saw jamming, saw slipping, los yog saw breakage uas feem ntau tshwm sim nrog scraper conveyors, los yog tsis muaj teeb meem xws li slippage los yog thoob dej yug ntses uas muaj nyob rau hauv lub thoob elevator. Nws txoj kev ruaj ntseg khiav yog yuav luag sib npaug ntawm txoj siv dav dav conveyor.

Cov qauv yooj yim

Cov khoom tseem ceeb tuaj yeem sib xws nrog cov siv siv conveyors. Tag nrho cov qauv yog qhov yooj yim, ua rau nws yooj yim rau nruab, tswj thiab kho. Qhov no tsis tsuas yog txo cov nqi siv ntawm cov cuab yeej siv, tab sis kuj txhim kho kev ntseeg tau thiab ruaj khov ntawm cov khoom siv.

Kho kom haum rau kev ua haujlwm nyuaj

Nws tuaj yeem thauj ntau yam khoom siv nrog ntau qhov ntom ntom ntawm 0.5 txog 2.5 t / m³ hauv ib puag ncig ntawm -15℃rau +40℃. Rau cov ntaub ntawv tshwj xeeb xws li siab -kub, acidic, alkaline, thiab oily, yuav tsum tau tshwj xeeb ntug-guard conveyor siv.

Steep Angle Sidewall Siv Conveyor Pob & Xa

Zoo pib nrog craftsmanship thiab tiav los ntawm kev xa khoom. Peb nruj me ntsis ntim txhua lub Hoobkas- cov khoom tiav nrog cov qauv siab thiab cov cai nruj. Los ntawm ntau cov txheej txheem ntawm kev tiv thaiv thiab lub hom phiaj kev txhawb nqa, peb txo qhov kev pheej hmoo ntawm kev puas tsuaj thaum thauj. Qhov kev mob siab rau cov ntsiab lus no tsuas yog los xyuas kom meej tias qhov koj tau txais tsis yog tsuas yog cov khoom zoo tshaj -, tab sis kuj yog peb txoj kev cog lus ruaj khov.

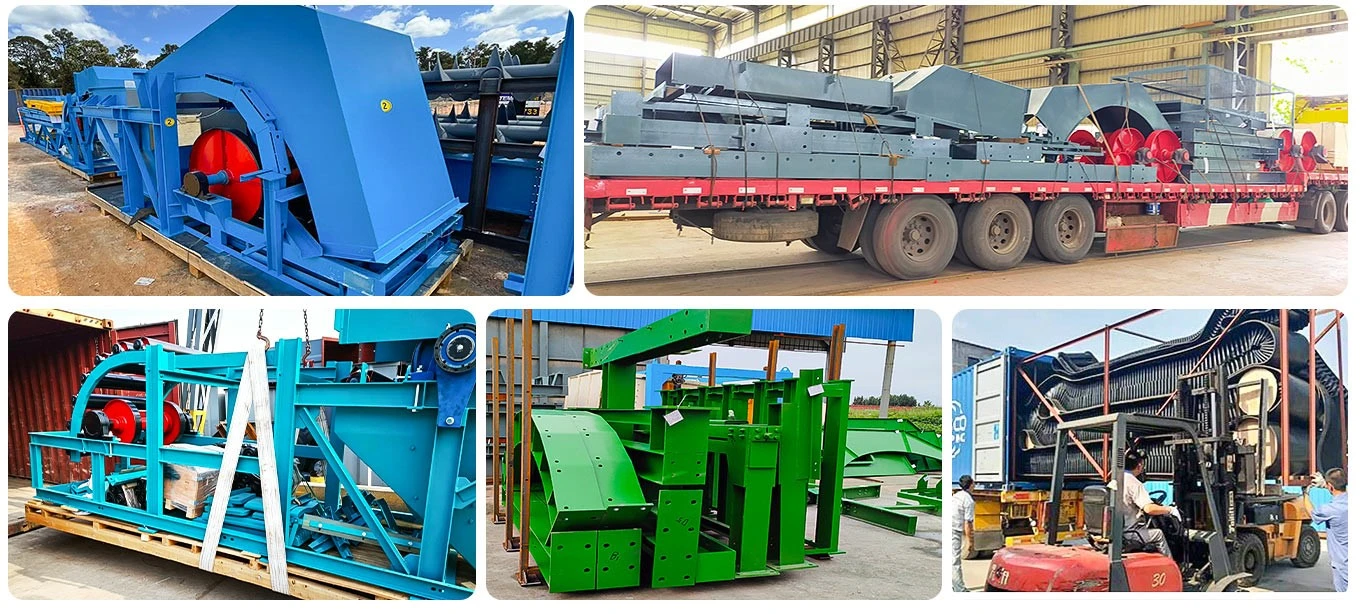

Steep Angle Sidewall Belt Conveyor Package Delivery

Lub kaum sab xis Sidewall Siv Conveyor Daim Ntawv Thov

Kev lag luam mining	Hauv cov xwm txheej mining xws li cov hlau ore thiab thee mines, lub kaum sab xis ntawm txoj siv sia siv conveyor tuaj yeem thauj cov khoom zoo li ore thiab thee.
Fais fab & Zog Sector	Cov thee conveying system hauv thermal fais fab nroj tsuag feem ntau ntsib qhov chaw txwv. Los ntawm kev siv lub kaum sab xis- lub kaum sab xis- phab ntsa siv conveyor, qhov ntev ntawm cov thee conveying txoj kev yog luv luv, thiab tib lub sijhawm, nws cov qauv tiv thaiv ntug tuaj yeem daws cov teeb meem spillage cov khoom uas tshwm sim hauv cov tsoos siv conveyors ntawm 45℃inclination.
Tsev Khoom & Metallurgical Kev Lag Luam	Cov khoom no tuaj yeem siv tau thoob plaws tag nrho cov txheej txheem los ntawm cov khoom siv raw crushing mus rau clinker kev thauj mus los hauv cov kab ntau lawm. Nws qhov siab -kub resistant ntug band (tuaj yeem tiv taus 120℃cov ntaub ntawv) yog tshwj xeeb tshaj yog haum rau kev thauj mus los ntawm siab - cov ntaub ntawv kub xws li sintered ore thiab cement clinker.
Chaw nres nkoj Logistics & Grain Storage & Tsheb thauj mus los	Hauv kev thauj khoom thiab tshem tawm cov haujlwm ntawm cov khoom thauj khoom thauj ntau, qhov ntxhab - lub kaum sab xis txoj siv sia conveyor tuaj yeem ua tiav kev thauj mus los ncaj qha los ntawm lub nkoj mus rau thaj chaw cia khoom, zam ntau qhov kev hloov pauv nruab nrab. Hauv thaj chaw khaws qoob loo, nws cov qauv kaw (nrog npog ntxiv) yog siv los xyuas kom muaj plua plav- pov thawj kev thauj cov qoob loo xws li pob kws thiab nplej. Lub kaum sab xis tuaj yeem ncav cuag 60℃yam tsis muaj kev cuam tshuam rau kev thauj mus los.
Tshuaj & Environmental Protection Industry	Nws yog siv rau kev thauj mus los ntawm hmoov thiab granular khoom xws li chiv thiab ntsev. Cov khoom siv tshwj xeeb ntug bands (xws li kua qaub thiab alkali resistant roj hmab) txuas lub neej kev pab cuam ntawm cov khoom siv.

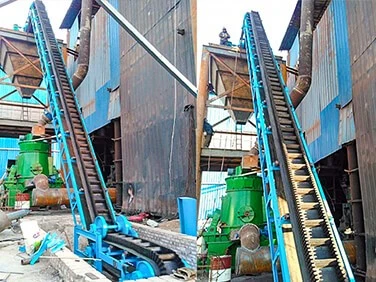

Steep Angle Sidewall Belt Conveyor Application Site

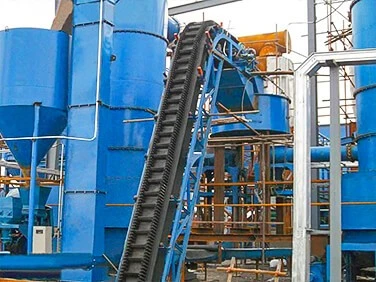

Steep Angle Sidewall Belt Conveyor Application Site-2

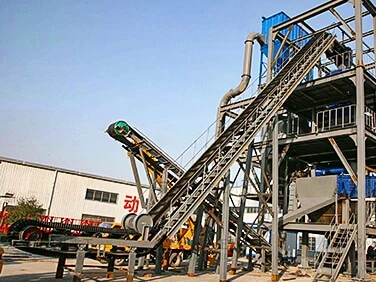

Steep Angle Sidewall Belt Conveyor Application Site-3

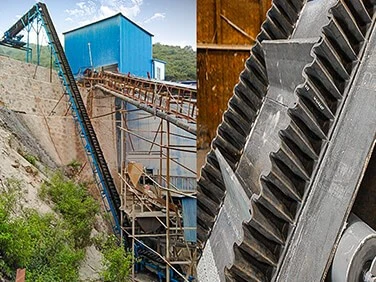

Steep Angle Sidewall Belt Conveyor Application Site-4

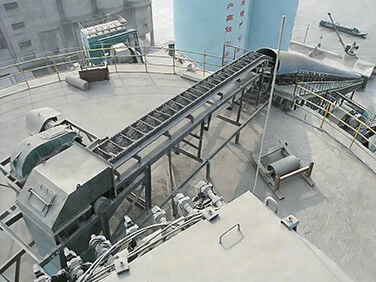

Steep Angle Sidewall Belt Conveyor Application Site-5

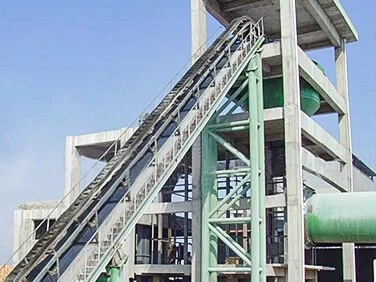

Steep Angle Sidewall Belt Conveyor Application Site-6

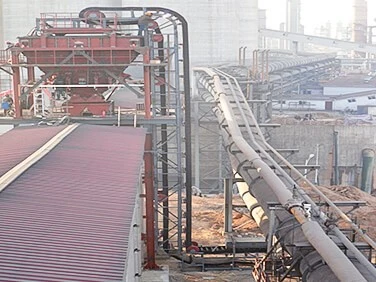

Steep Angle Sidewall Belt Conveyor Application Site-7

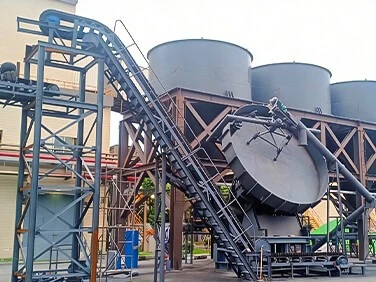

Steep Angle Sidewall Belt Conveyor Application Site-8

5 Vim li cas thiaj xaiv EXCT Lub kaum sab xis Sidewall Siv Conveyor

Factory ncaj qha muag

Cov khoom siv ncaj qha los ntawm lub Hoobkas, tshem tawm cov kev sib txuas nruab nrab, ua rau cov nqi zoo dua. Cov kev pabcuam tsis raug txo qis, tso cai rau koj txuag nyiaj, txhawj xeeb tsawg dua thiab ua haujlwm tau zoo dua.

Quality Assurance

Peb muaj peb tus kheej lub rooj cob qhia. Peb nruj me ntsis ua raws li lub teb chaws tus qauv thiab ua tiav cov txheej txheem tswj los ntawm kev tsim khoom mus rau kev tshuaj xyuas. Cov khoom tau lees paub tias tsim nyog thiab txhim khu kev qha zoo.

5 Reasons to Choose EXCT Corrugated Sidewall Conveyor

Kev Pabcuam Kev Pabcuam Kev Ua Haujlwm

nws cov kws tshaj lij pab neeg ua haujlwm zoo tsim thiab txhim kho cov cuab yeej siv, ua kom haum rau koj cov kev ua haujlwm tshwj xeeb, thiab muab kev qhia dav dav thoob plaws hauv cov txheej txheem los xyuas kom meej qhov zoo sib xws ntawm cov khoom siv.

Tsis cuam tshuam tom qab-Kev Pabcuam muag

Cov lus teb ceev ceev hauv 2 teev, kev daws teeb meem hauv 24 teev, thiab tuaj txog ntawm qhov chaw hauv 48 teev; dawb hloov thiab kho tsis pub dhau 12 lub hlis lav lub sijhawm, ua kom koj tsis muaj kev txhawj xeeb.

General Technical Parameter

Siv dav (mm)	Sidewall Qhov siab (mm)	Qhov Cuam Tshuam (mm)	Lub kaum ntse ntse
			30 degree	35 degree	40 degree	45 degree	50 degree	55 degree	60 degree	65 degree	70 degree	75 degree	80 degree	85 degree	90 degree
			Muaj peev xwm(m³/h)
500	80	126	42	38	36	31	28	25	22	20	18	16	15	13	11
	80	252	23	20	18	16	14	13	12	-	-	-	-	-	-
	100	126	56	52	48	44	40	36	32	29	26	24	21	19	16
	100	252	34	29	26	23	21	19	17	15	-	-	-	-	-
	120	126	-	-	-	-	58	53	48	44	39	35	32	28	24
		252	49	44	39	34	31	28	25	23	20	-	-	-	-
		378	33	29	25	23	-	-	-	-	-	-	-	-	-
650	100	126	78	73	67	61	56	50	45	41	37	33	30	26	23
	100	252	47	41	36	32	28	26	24	21	-	-	-	-	-
	120	126	-	-	-	-	81	75	68	61	56	50	44	39	34
		252	70	61	54	48	43	39	35	32	29	-	-	-	-
		378	46	40	35	32	-	-	-	-	-	-	-	-	-
	160	252	93	84	75	67	60	54	49	44	40	36	32	28	25
	160	378	64	56	49	44	40	36	32	29	26	24	-	-	-
800	120	126	-	-	-	-	106	98	89	80	72	65	58	51	46
		252	93	80	71	63	56	51	46	42	38	-	-	-	-
		378	61	53	47	42	-	-	-	-	-	-	-	-	-
	160	252	127	115	103	91	82	74	67	60	54	49	44	38	34
	160	378	88	76	67	60	54	49	44	40	35	32	-	-	-
	200	252	-	-	-	-	135	122	110	100	90	81	72	64	55
		378	144	126	111	99	89	80	72	65	60	53	47	42	36
		504	110	96	85	75	-	-	-	-	-	-	-	-	-
1000	160	252	171	154	138	122	110	99	90	81	73	66	59	52	45
	160	378	118	102	91	81	72	65	59	53	48	43	-	-	-
	200	252	-	-	-	-	182	164	148	134	121	108	97	85	75
		378	193	164	149	133	119	108	98	88	79	71	64	56	48
		504	148	129	113	101	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	242	221	200	180	162	144	127	111
		378	273	248	223	199	179	161	146	132	119	107	95	84	73
		504	221	192	170	151	136	-	-	-	-	-	-	-	-
1200	160	252	214	193	173	154	138	124	112	102	92	82	73	65	57
	160	378	148	128	113	101	91	82	74	69	60	-	-	-	-
	200	252	-	-	-	250	228	206	185	168	152	136	121	107	93
		378	243	212	188	167	150	135	122	111	100	90	80	70	61
		504	186	161	143	-	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	303	278	251	226	203	181	160	136
		378	342	311	280	250	224	202	183	165	149	134	119	105	91
		504	278	241	213	190	170	-	-	-	-	-	-	-	-
	300	336	431	406	380	354	326	296	268	242	218	196	175	154	134
	300	504	350	312	276	246	221	199	180	163	147	132	117	104	90
1400	200	252	-	-	-	301	274	247	224	202	183	164	146	129	112
		378	292	255	226	201	181	163	147	133	120	108	96	85	73
		504	224	194	171	-	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	365	339	302	272	245	218	192	167
		378	412	374	337	300	270	243	220	199	180	161	143	127	110
		504	334	290	256	228	205	-	-	-	-	-	-	-	-
	300	336	526	495	463	431	397	361	326	295	266	239	213	188	163
	300	504	426	380	336	299	269	243	219	198	178	160	143	126	109
	400	420	756	717	678	673	595	549	500	452	408	366	327	288	250
	400	504	707	661	614	566	515	465	420	380	343	308	274	242	210
1600	200	252	-	-	-	352	320	289	261	236	213	191	171	150	131
		378	341	299	263	235	211	190	172	155	140	126	112	99	86
		504	261	227	200	-	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	427	390	353	318	286	255	225	195
		378	481	437	393	351	315	284	257	232	209	188	168	148	128
		504	390	339	299	267	239	-	-	-	-	-	-	-	-
	300	336	620	584	546	508	468	426	385	348	314	282	251	222	192
	300	504	503	448	396	353	317	286	259	234	211	189	169	149	129
	400	420	891	846	799	751	701	648	590	533	481	432	385	340	295
	400	504	834	779	724	667	608	548	496	448	404	362	324	285	247
1800	240	252	-	-	-	-	-	488	447	404	364	327	292	257	223
	240	378	550	501	450	401	360	325	294	266	240	215	192	169	147
	300	504	432	387	342	305	274	-	-	-	-	-	-	-	-
		336	681	641	600	558	514	467	422	382	344	309	276	243	211
		504	579	516	456	407	365	300	297	269	243	218	194	172	149
	400	420	1027	974	921	866	808	747	680	614	554	498	444	391	340
	400	504	960	898	835	769	700	632	571	516	466	418	373	329	286
	500	525	1259	1197	1133	1067	999	925	846	765	690	619	552	487	423
	500	735	1094	1006	917	826	741	669	604	546	493	442	394	348	302
